• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 164495

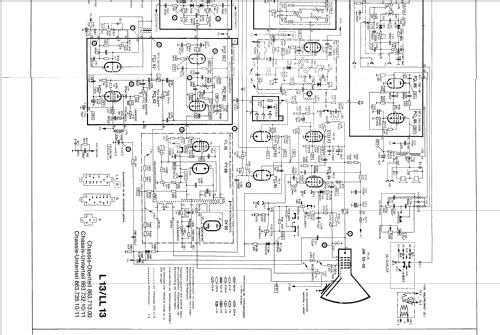

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF80 PC88 PC86 EF183 EF80 EF80 ECH83 PCL84 EF80 EF80 PCL86 PCF80 ECH83 ECC82 PCL82 PCF802 PL36 PY88 DY86 AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Präsident 13 Ch= L13/LL13 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 615 x 560 x 440 mm / 24.2 x 22 x 17.3 inch

• Notes
• UHF/VHF

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Andreas Rasche. See "Data change" for further contributors.
