For model Rigoletto FA-55 Ch= 410 6 Tasten, EM80, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM80 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Rigoletto FA-55 Ch= 410 [6 Tasten, EM80] - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 535 x 340 x 255 mm / 21.1 x 13.4 x 10 inch
Notes Schaltbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 269.00 DM
Collectors' prices
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55

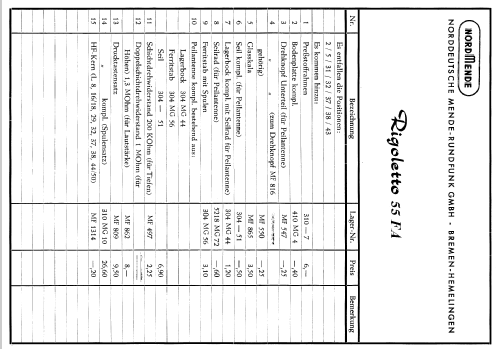

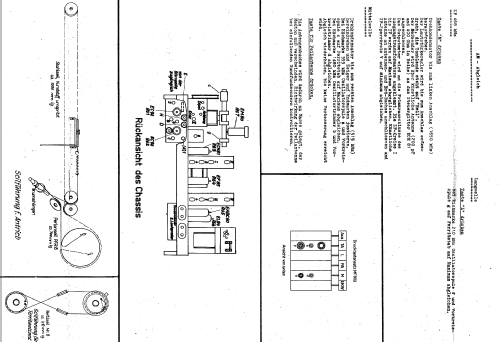

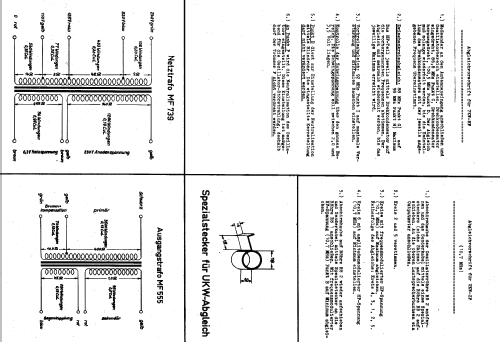

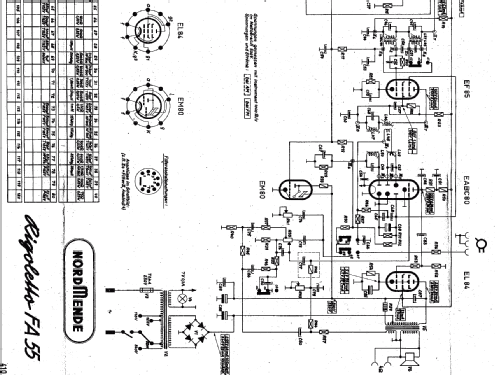

Literature/Schematics (1) -- Original-techn. papers.
