Nordmende,: Phono-Super Stereo D700 Ch= 3/616 [Radio] ID = 2368831 1400x1050

Select picture or schematic to display from thumbnails on the right and click for download.

For model Phono-Super Stereo D700 Ch= 3/616, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:

Germany

Manufacturer / Brand:

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Year: 1962/1963

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

8: ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84

Semiconductors (the count is only for transistors)

Tr.Gl.=Metal-rectif.

Main principle	to an article Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits	6 AM circuit(s) 10 FM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.

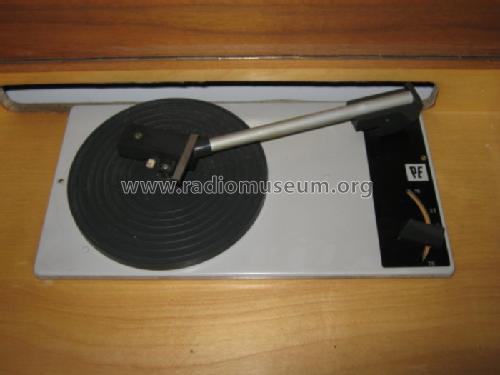

Details	Record Player (not changer)
Power type and voltage	Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker	2 Loudspeakers
Power out	6 W (unknown quality)
from Radiomuseum.org	Model: Phono-Super Stereo D700 Ch= 3/616 - Nordmende, Norddeutsche Mende-
Material	Wooden case
Shape	Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD)	560 x 335 x 300 mm / 22 x 13.2 x 11.8 inch
Notes	Gehäuseform: Gerade, kantig. Keine Zierleisteneinfassung der Front. 2 Endstufen je 3 Watt Ausgangsleistung. 2 Lautsprecher, Breitband: perm.-dyn., je 180 x 100 mm, oval. Phono-Chassis = Perpetuum-Ebner PE31.
Net weight (2.2 lb = 1 kg)	15.1 kg / 33 lb 4.2 oz (33.26 lb)
Price in first year of sale	575.00 DM

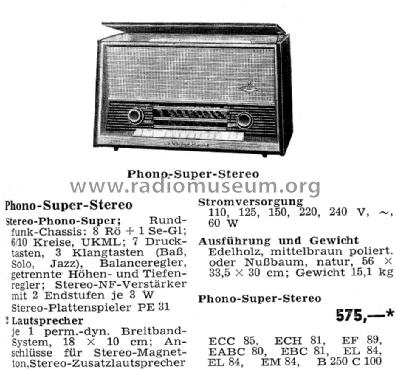

Mentioned in	HdB d.Rdf-& Ferns-GrH 1962/63
Literature/Schematics (1)	-- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.

All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1715 models, 1606 with images and 1236 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Lukas Faoro (CH)

Collection of Vitor Oliveira (P)

Collection of Richard Sbuell (A)

Collection of Roland Rauch (D)

Collection of Sergio Bracchi (I)

Collection of Hans-Werner Ellerbrock (D)

Collection of Bruno Bühler (CH)

Forum contributions about this model

Nordmende,: Phono-Super Stereo D700 Ch= 3/616

Threads: 1 | Posts: 3

Hits: 2530 Replies: 2 nordmende: 1/616; Phono-Super-Stereo
Hans-Werner Ellerbrock 10.Feb.11	1 nordmende: 1/616; Phono-Super-Stereo Dieses Modell (Phonosuper) trägt nach Auskunft von Herrn Bronner, GFGF, auch die Chassisbezeichnung E700/F. Seiner Auskunft nach ist es baugleich mit dem 1/616.
Wolfgang Bauer 10.Feb.11	2 1/616 ? Sg. Herr Ellerbrock, auf den von Ihnen und Herrn Haring hochgeladenen Bildern ID = 820216 und ID = 30004 ist aber eindeutig: Schaltplan 3/616 zu lesen. Außerdem heißt das Gerät nach dem Typenschild "Phono-Super D700". Hier stimmt also einiges nicht. Auf keinen Fall gehören die Bilder zu diesem Modell. Dieses Modell Phono-Super D700 Ch=3/616 gehört neu angelegt und die Bilder dann dorthin verschoben. MfG. WB.
Wolfgang Bauer 01.Oct.16	3 Modell bereinigt Das Modell Phono-Super D700 wurde angelegt und die Bilder richtig zugeordnet. MfG. WB.
