Champion 695 (R695A)
Use red slider bar for more.

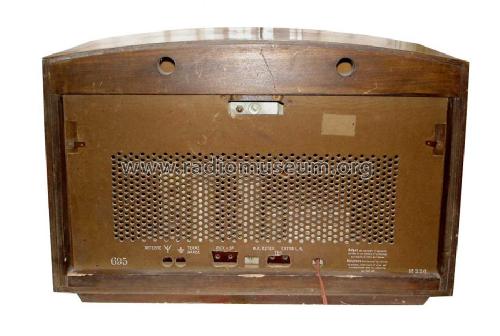

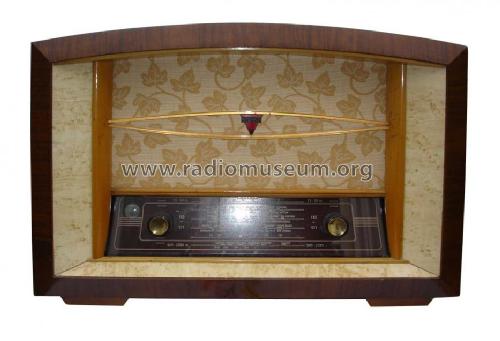

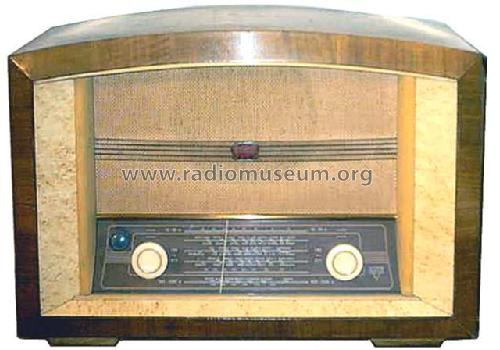

Novak also Pontiac;: Champion 695 [Radio] ID = 391911 933x637
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH41 or ECH42 EAF41 or EAF42 EAF41 or EAF42 EL41 EM4 AZ41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 478 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm |
| Power out | |
| from Radiomuseum.org | Model: Champion 695 - Novak also Pontiac; Bruxelles |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 570 x 380 x 250 mm / 22.4 x 15 x 9.8 inch |
| Price in first year of sale | 366.00 Hfl |
| Source of data | Technisch- Commercieel - Radio Vademecum Staleman |
| Literature/Schematics (1) | -- Schematic |
