For model Néprádió 115U, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner

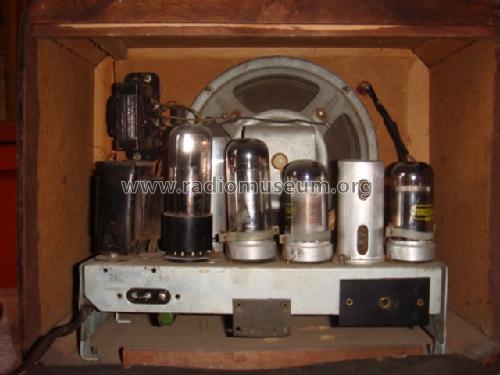

Valves / Tubes 4: UCH21 UF21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 473 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Néprádió 115U - Orion; Budapest

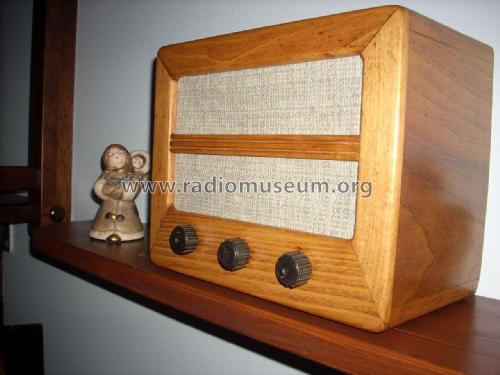

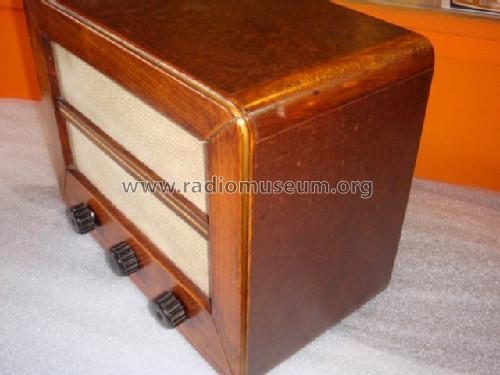

Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 300 x 250 x 180 mm / 11.8 x 9.8 x 7.1 inch

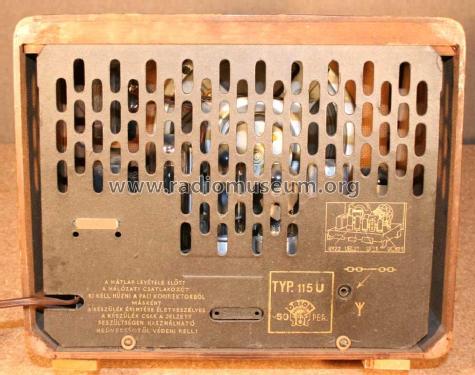

Notes Orion "Typ. 115U". Appears similar to model 115A, but with an additional central knob for fine tuning. Orion "Typ. 115U". Appears similar to model 313 ( Wooden case), but with an additional central knob for fine tuning.
Net weight (2.2 lb = 1 kg) 4.1 kg / 9 lb 0.5 oz (9.031 lb)

Model page created by Giovanni Fiorenza. See "Data change" for further contributors.
