155

155; Orion; Budapest (ID = 18910) Radio

155; Orion; Budapest (ID = 1707590) Radio
155; Orion; Budapest (ID = 322362) Radio 155; Orion; Budapest (ID = 134194) Radio

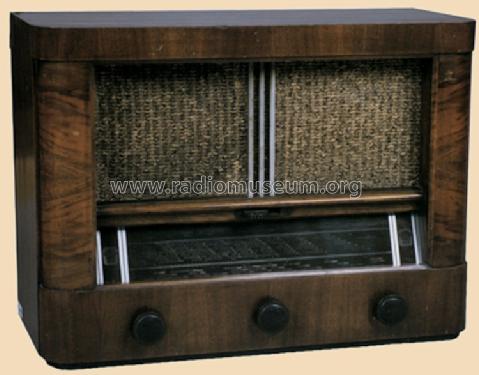

155; Orion; Budapest (ID = 471647) Radio
Use red slider bar for more.
155; Orion; Budapest (ID = 322362) Radio
Orion; Budapest: 155 [Radio] ID = 322362 793x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 155, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EBF2 ECL11 AZ1
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 155 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 400 x 236 mm / 22 x 15.7 x 9.3 inch
Price in first year of sale 305.00 Pengő
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (4) Antenna, 1940/34.
