216A

216A; Orion; Budapest (ID = 172274) Radio
216A; Orion; Budapest (ID = 188866) Radio 216A; Orion; Budapest (ID = 188867) Radio

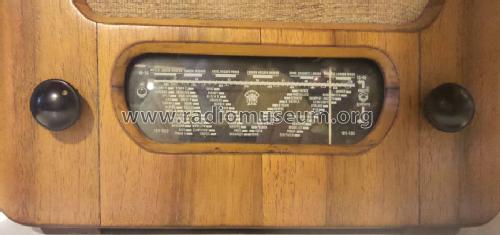

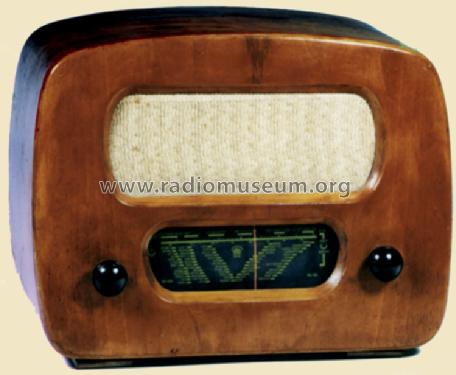

216A; Orion; Budapest (ID = 472053) Radio 216A; Orion; Budapest (ID = 1726121) Radio
216A; Orion; Budapest (ID = 1726123) Radio 216A; Orion; Budapest (ID = 1726124) Radio
216A; Orion; Budapest (ID = 2428266) Radio 216A; Orion; Budapest (ID = 2428267) Radio
216A; Orion; Budapest (ID = 2428268) Radio
Use red slider bar for more.

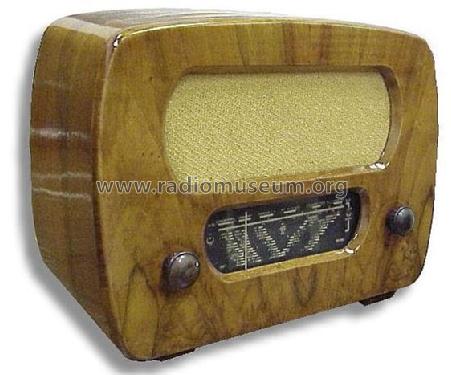

216A; Orion; Budapest (ID = 188866) Radio
Orion; Budapest: 216A [Radio] ID = 188866 562x467
Select picture or schematic to display from thumbnails on the right and click for download.
For model 216A, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 216A - Orion; Budapest
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
