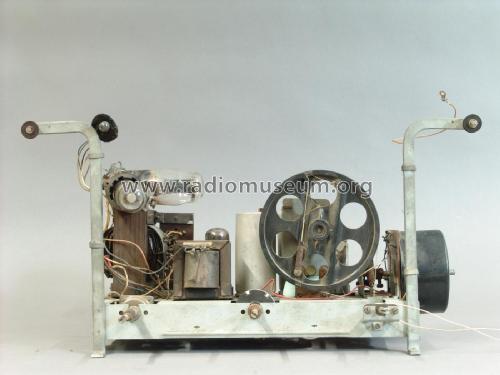

331 Turkish exports

331; Orion; Budapest (ID = 2318984) Radio

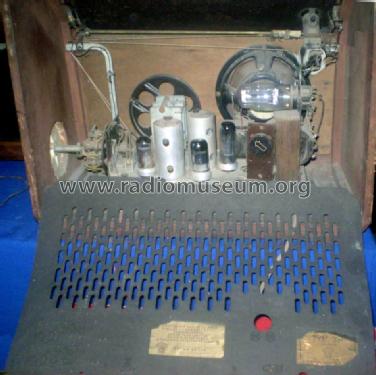

331; Orion; Budapest (ID = 379871) Radio 331; Orion; Budapest (ID = 979861) Radio
331; Orion; Budapest (ID = 979865) Radio
Use red slider bar for more.
331; Orion; Budapest (ID = 379871) Radio
Orion; Budapest: 331 [Radio] ID = 379871 719x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model 331 Turkish exports, Orion; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 473,6 kHz; Export model
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 331 [Turkish exports] - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 370 x 270 mm / 20.5 x 14.6 x 10.6 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Orion; Budapest
Here you find 997 models, 853 with images and 364 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
