• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83364

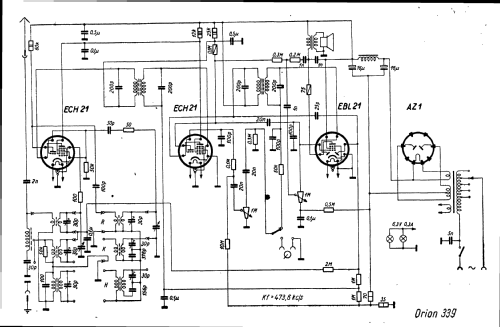

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 107, 127, 150, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 339 - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 1,450.00 HUF

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Literature/Schematics (1)

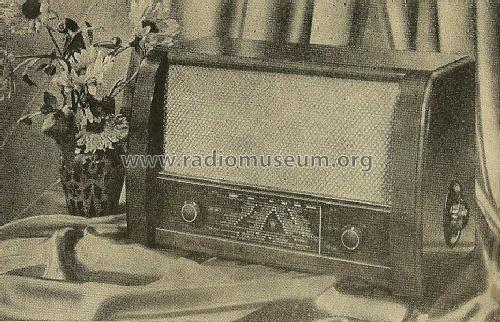

• -- Original prospect or advert

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
