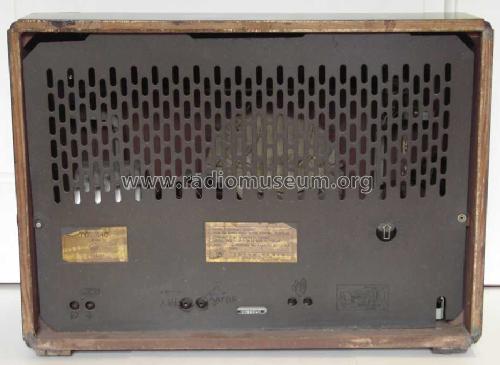

440; Orion; Budapest (ID = 1183358) Radio 440; Orion; Budapest (ID = 1183359) Radio
440; Orion; Budapest (ID = 1246712) Radio 440; Orion; Budapest (ID = 1503709) Radio
440; Orion; Budapest (ID = 1583648) Radio 440; Orion; Budapest (ID = 1583649) Radio
Use red slider bar for more.

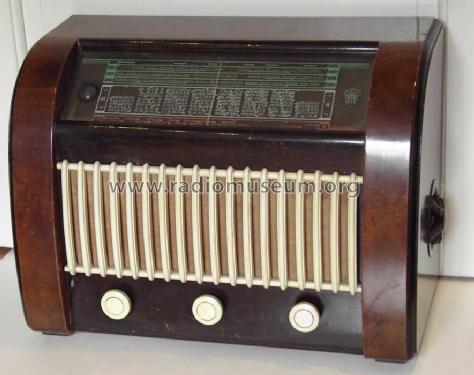

440; Orion; Budapest (ID = 1183356) Radio
Orion; Budapest: 440 [Radio] ID = 1183356 885x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 440, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner

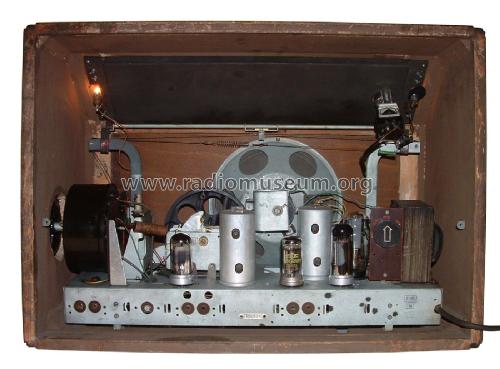

Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details

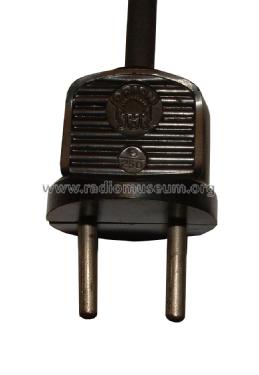

Power type and voltage Alternating Current supply (AC) / 107; 125; 132; 150; 185; 215; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 440 - Orion; Budapest
Material Wooden case

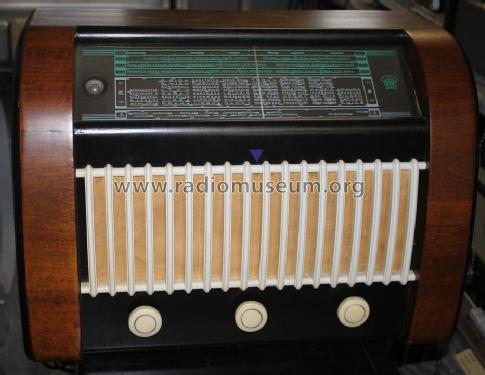

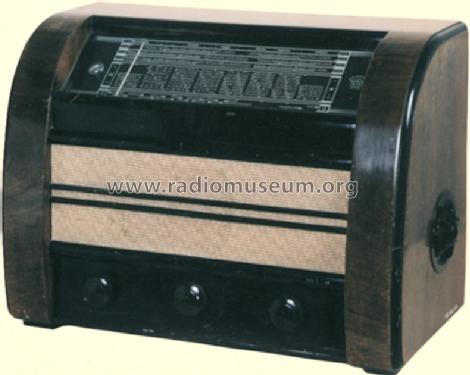

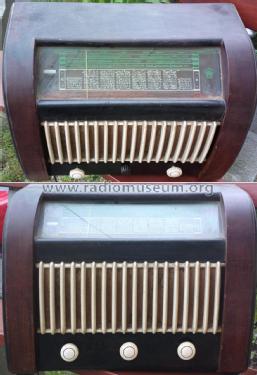

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 370 x 270 mm / 21.7 x 14.6 x 10.6 inch

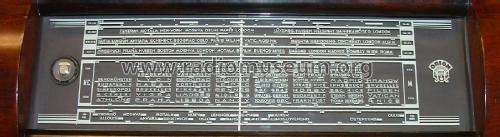

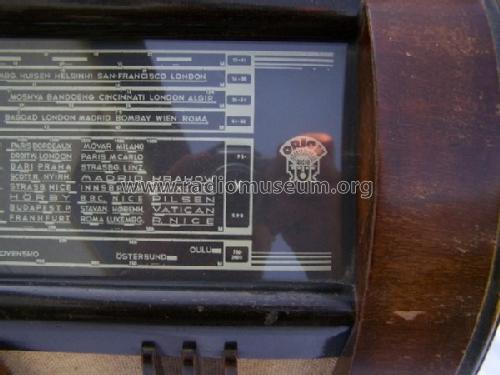

Notes A: 16-19m, B: 25 C-31m 41-50m, D: 190-590m E:715-2000m F: 13.5-41m Norwegian version: F: 90 to 210 m
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 1'800.00 HUF
Source of data - - Manufacturers Literature
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
