449

449; Orion; Budapest (ID = 164856) Radio
449; Orion; Budapest (ID = 164857) Radio 449; Orion; Budapest (ID = 164858) Radio
449; Orion; Budapest (ID = 164859) Radio 449; Orion; Budapest (ID = 266440) Radio
449; Orion; Budapest (ID = 266441) Radio 449; Orion; Budapest (ID = 266442) Radio
449; Orion; Budapest (ID = 383498) Radio 449; Orion; Budapest (ID = 1470173) Radio
449; Orion; Budapest (ID = 1470174) Radio 449; Orion; Budapest (ID = 1470175) Radio
Use red slider bar for more.

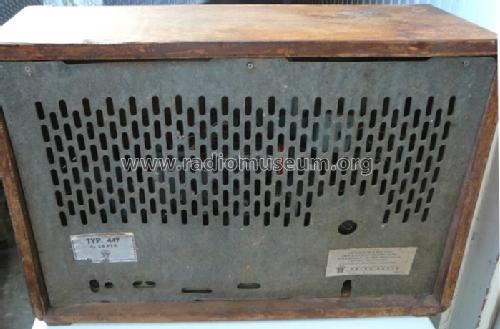

449; Orion; Budapest (ID = 164857) Radio
Orion; Budapest: 449 [Radio] ID = 164857 766x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 449, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 449 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 370 x 270 mm / 21.7 x 14.6 x 10.6 inch
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 1'900.00 HUF
Source of data -- Original prospect or advert
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Orion; Budapest
Here you find 997 models, 853 with images and 364 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
