520A 010

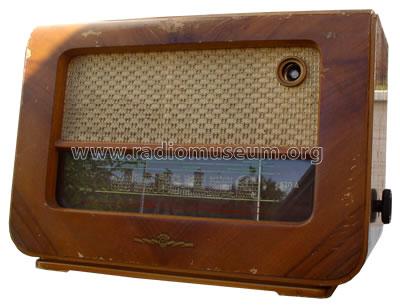

520A; Orion; Budapest (ID = 172360) Radio
520A; Orion; Budapest (ID = 472289) Radio 520A; Orion; Budapest (ID = 903653) Radio
520A; Orion; Budapest (ID = 172253) Radio 520A; Orion; Budapest (ID = 383758) Radio
520A; Orion; Budapest (ID = 903652) Radio 520A; Orion; Budapest (ID = 1048309) Radio
520A; Orion; Budapest (ID = 1569733) Radio 520A; Orion; Budapest (ID = 1569734) Radio
520A; Orion; Budapest (ID = 2241660) Radio
Use red slider bar for more.
520A; Orion; Budapest (ID = 472289) Radio
Orion; Budapest: 520A [Radio] ID = 472289 692x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model 520A 010, Orion; Budapest:
A magyar rádiózás története. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 520A [010] - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 350 x 260 mm / 19.7 x 13.8 x 10.2 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 1'800.00 Forint
Mentioned in Rádiókészülékek Kapcsolásai 1936-56
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Folkert Rothe. See "Data change" for further contributors.
