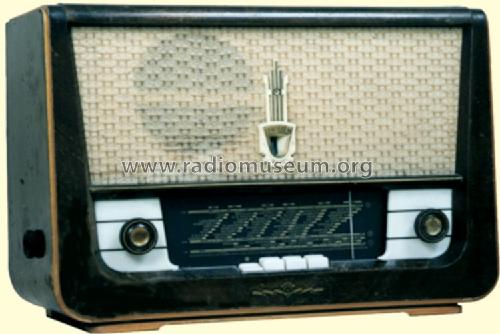

AR303; Orion; Budapest (ID = 172259) Radio AR303; Orion; Budapest (ID = 472871) Radio

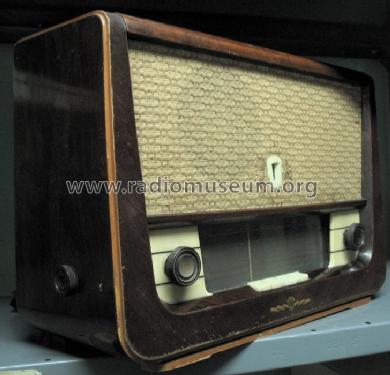

AR303; Orion; Budapest (ID = 644094) Radio AR303; Orion; Budapest (ID = 644095) Radio
AR303; Orion; Budapest (ID = 903658) Radio AR303; Orion; Budapest (ID = 903659) Radio
AR303; Orion; Budapest (ID = 903660) Radio AR303; Orion; Budapest (ID = 1520597) Radio
AR303; Orion; Budapest (ID = 1520598) Radio AR303; Orion; Budapest (ID = 2207153) Radio
Use red slider bar for more.
AR303; Orion; Budapest (ID = 172259) Radio
Orion; Budapest: AR303 [Radio] ID = 172259 441x295
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR303 010, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EL84 EZ80 DM70
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR303 [010] - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 350 x 200 mm / 19.7 x 13.8 x 7.9 inch
Notes SW: 6-18,2 MHz
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'420.00 HUF
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
