AR304-47K

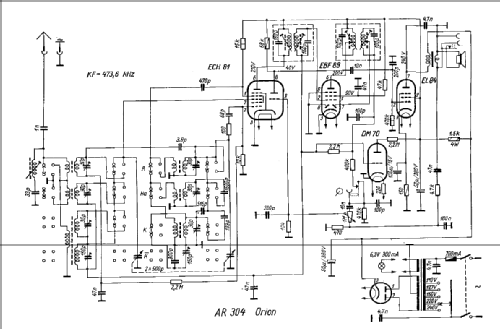

AR304-47K; Orion; Budapest (ID = 1717514) Radio

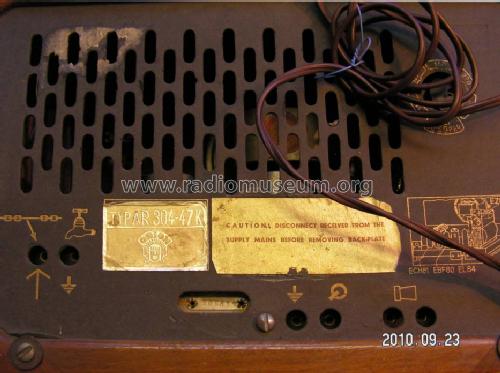

AR304-47K; Orion; Budapest (ID = 825123) Radio AR304-47K; Orion; Budapest (ID = 825124) Radio
AR304-47K; Orion; Budapest (ID = 825125) Radio AR304-47K; Orion; Budapest (ID = 825126) Radio
AR304-47K; Orion; Budapest (ID = 2227701) Radio
Use red slider bar for more.
AR304-47K; Orion; Budapest (ID = 825123) Radio
Orion; Budapest: AR304-47K [Radio] ID = 825123 550x416
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR304-47K, Orion; Budapest:
Thanks for Mr.Sik Béla, Hungary!

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 EL84 EZ80 DM70
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR304-47K - Orion; Budapest
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 280 x 220 mm / 15.4 x 11 x 8.7 inch
Notes With Marine Band: 4750 - 4995 kHz (60 m).
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
