AR304

AR304; Orion; Budapest (ID = 180267) Radio

AR304; Orion; Budapest (ID = 1717513) Radio
AR304; Orion; Budapest (ID = 396637) Radio AR304; Orion; Budapest (ID = 824297) Radio

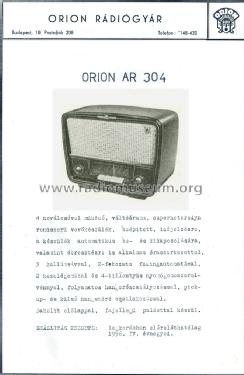

AR304; Orion; Budapest (ID = 1504795) Radio AR304; Orion; Budapest (ID = 2227702) Radio
Use red slider bar for more.
AR304; Orion; Budapest (ID = 396637) Radio
Orion; Budapest: AR304 [Radio] ID = 396637 450x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR304, Orion; Budapest

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 EL84 EZ80 DM70
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR304 - Orion; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 280 x 220 mm / 15.4 x 11 x 8.7 inch
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data Radio es Televizio Vevö Keszülekek, 1960-63

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
