AR 303 020

AR 303; Orion; Budapest (ID = 1717437) Radio

AR 303; Orion; Budapest (ID = 1717438) Radio

AR 303; Orion; Budapest (ID = 1896842) Radio
AR 303; Orion; Budapest (ID = 529663) Radio AR 303; Orion; Budapest (ID = 644096) Radio
AR 303; Orion; Budapest (ID = 644099) Radio AR 303; Orion; Budapest (ID = 1520589) Radio
AR 303; Orion; Budapest (ID = 1520590) Radio AR 303; Orion; Budapest (ID = 2207154) Radio
AR 303; Orion; Budapest (ID = 2236392) Radio
Use red slider bar for more.
AR 303; Orion; Budapest (ID = 529663) Radio
Orion; Budapest: AR 303 [Radio] ID = 529663 555x394

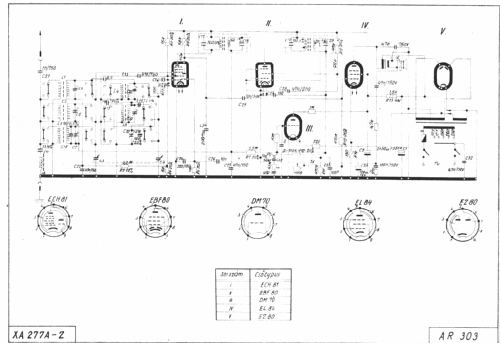

Select picture or schematic to display from thumbnails on the right and click for download.
For model AR 303 020, Orion; Budapest:
A magyar rádiózás története CD.

Country:  Hungary
Manufacturer / Brand:  Orion; Budapest
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EL84 EZ80 DM70
Main principle Super-Heterodyne (Super in general); ZF/IF 473,6 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR 303 [020] - Orion; Budapest
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 350 x 200 mm / 19.7 x 13.8 x 7.9 inch
Notes SW1: 5,7-11,5 MHz. SW2: 11,5- 18,5 MHz.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'420.00 HUF
Literature/Schematics (1) Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
