• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95258

• Number of Tubes
• 21

• Valves / Tubes
• PCF82 PCC84 PABC80 PL82 PL83 EF80 ECL80 DY80 ECC82 PL81 PY83 PY82 43SCP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

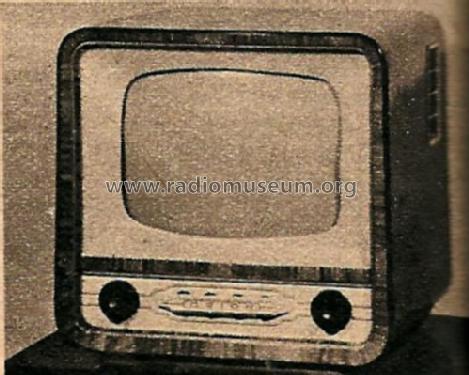

• Model: AT601 - Orion; Budapest

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 580 x 550 x 450 mm / 22.8 x 21.7 x 17.7 inch

• Notes
• Fernsehtischempfänger nach CCIR Norm. Sonst wie AT 501. AT 501 CCIR variation.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Mario Spitzer. See "Data change" for further contributors.
