• Country
• Germany

• Manufacturer / Brand
• Owin; Hannover

• Year
• 1928 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19083

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

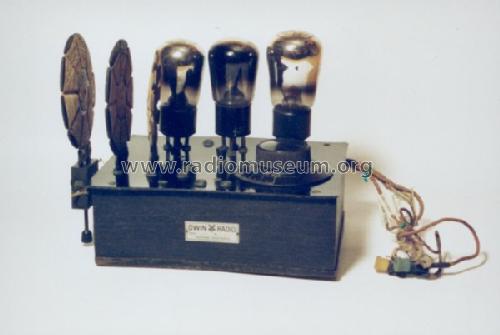

• Model: E166 - Owin; Hannover

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 205 x 85 x 145 mm / 8.1 x 3.3 x 5.7 inch

• Notes

• Je nach Prägung der OWIN-Typschilder kann es durch Fehlablesung zur Verwechslung von E mit F kommen. Der Bezeichnungssystematik nach beginnen Empfänger des Herstellers mit E.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Other Models

• Here you find 230 models, 187 with images and 81 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
