General L144W

General L144W; Owin; Hannover (ID = 1779204) Radio

General L144W; Owin; Hannover (ID = 5026) Radio

General L144W; Owin; Hannover (ID = 5025) Radio

General L144W; Owin; Hannover (ID = 1779197) Radio

General L144W; Owin; Hannover (ID = 1779199) Radio

General L144W; Owin; Hannover (ID = 1779200) Radio

General L144W; Owin; Hannover (ID = 1779201) Radio
General L144W; Owin; Hannover (ID = 1104629) Radio General L144W; Owin; Hannover (ID = 60999) Radio
General L144W; Owin; Hannover (ID = 1104631) Radio General L144W; Owin; Hannover (ID = 1104632) Radio
General L144W; Owin; Hannover (ID = 1104633) Radio General L144W; Owin; Hannover (ID = 1779176) Radio
Use red slider bar for more.
General L144W; Owin; Hannover (ID = 1104629) Radio
Owin; Hannover: General L144W [Radio] ID = 1104629 504x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model General L144W, Owin; Hannover:
ebay 190595289578, meinpeggymaedchen

Country:  Germany
Manufacturer / Brand:  Owin; Hannover
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AF3 AB2 AF7 AL1 AZ1
Main principle TRF with diode detector; 2 Special; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: General L144W - Owin; Hannover
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 355 x 225 mm / 17.9 x 14 x 8.9 inch

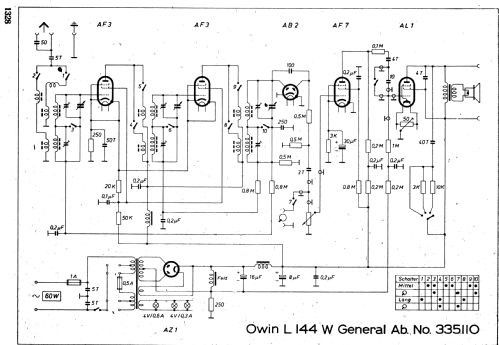

Notes Feldstärke-Anzeige; Kino-Skala; ab 335110 andere Schaltung.
Price in first year of sale 283.00 RM
Collectors' prices
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Owin; Hannover
Here you find 216 models, 164 with images and 78 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
