• Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13066

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

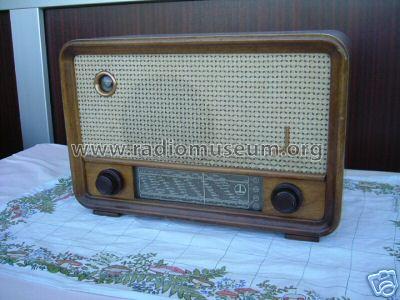

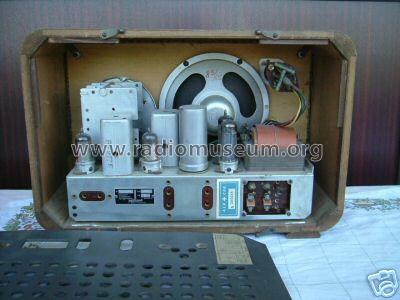

  • Model: 4305B - Paillard AG; St. Croix
  • Dimensions (WHD)
  • 390 x 260 x 170 mm / 15.4 x 10.2 x 6.7 inch
  • Notes
  • Ch=4304; Unterschied 513 zu 4305B ??
  • Price in first year of sale
  • 375.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
