For model 444, Paillard AG; St. Croix:

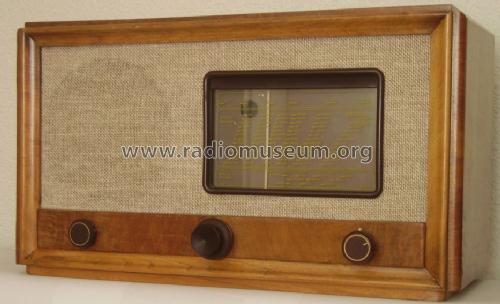

mittlerer Drehknop Abstimmung mit Feintrieb

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1943–1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EBF2 ECL11 AZ1 EM1
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 444 - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 536 x 302 x 222 mm / 21.1 x 11.9 x 8.7 inch
Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)
Price in first year of sale 495.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

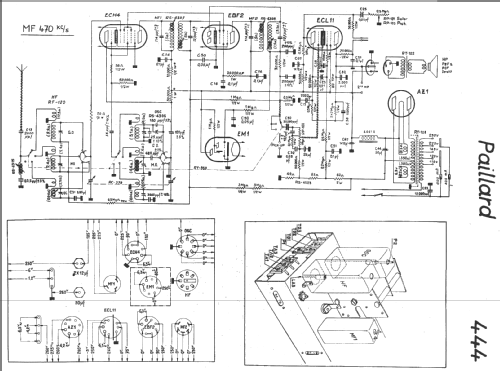

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
