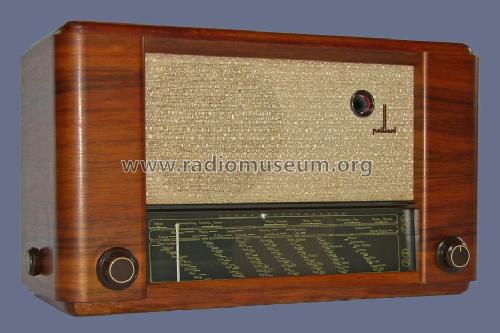

For model 451, Paillard AG; St. Croix:
Aus der Sammlung von Thomas Bollinger, CH - 8222 Beringen

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1944–1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EBF2 EF22 EBL21 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 451 - Paillard AG; St. Croix
Material Wooden case
Dimensions (WHD) 540 x 320 x 230 mm / 21.3 x 12.6 x 9.1 inch
Notes Tu=ECH4/EL3! Kurzwellenlupe. Auch mit anderer Bestückung (s. Foto.)
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 548.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
