Ch= 521 - 3307
Paillard AG; St. Croix
- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1951/1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256787
Typenschild
Skala
Netz-Eingang
Skala

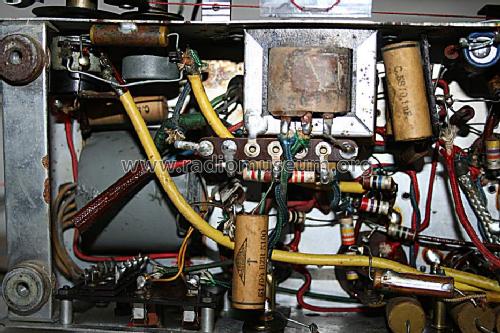

Innenansicht von unten gesehen.
Empfangs- und Oszillatorkreise.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.3 cm = 6.4 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= 521 - 3307 - Paillard AG; St. Croix
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 355 x 225 x 168 mm / 14 x 8.9 x 6.6 inch
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Walter Nigg. See "Data change" for further contributors.
