523-4307B
Paillard AG; St. Croix
- Country
- Switzerland
- Manufacturer / Brand
- Paillard AG; St. Croix
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13090
Front with flash
front with light

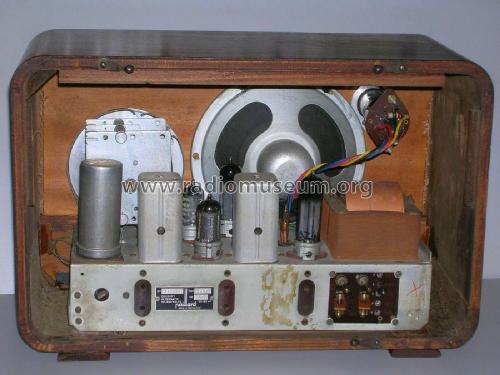

Back of radio

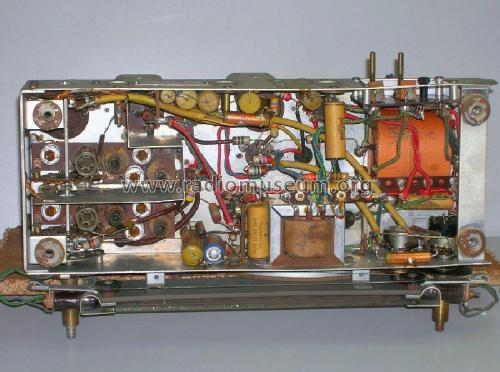

open back
model
Tubes

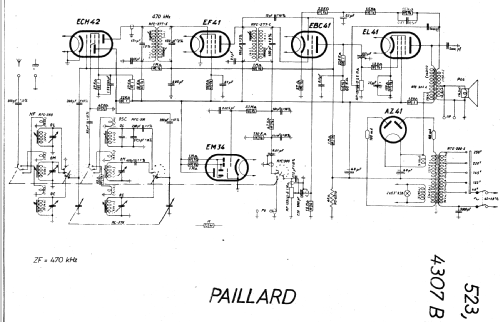

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145, 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 523-4307B - Paillard AG; St. Croix
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 390 x 260 x 170 mm / 15.4 x 10.2 x 6.7 inch
- Notes
- Ch=4307B . Dial lamps: 2x 6,3V 0,3A
- Price in first year of sale
- 418.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
