• Country
• Switzerland

• Manufacturer / Brand
• Paillard AG; St. Croix

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158755

• Number of Tubes
• 7

• Valves / Tubes
• 6J8 6K7 6K7 6Q7 2A3 6G5 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

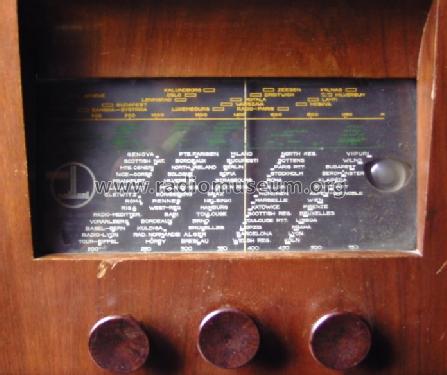

• Model: 59 - Paillard AG; St. Croix

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 330 x 285 mm / 22.4 x 13 x 11.2 inch

• Notes
• Mallory - Zelle für Gittervorspannung 6Q7. 3 verschiedene, voneinander getrennte Heizspannungen: 2,5 V ,5 V und 6,3 V.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
