• Country
• Germany

• Manufacturer / Brand
• PEK, Paul E. Klein Electronic; Tettnang

• Year
• 1957 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 272807

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• EL803 EL803 EL803 EL803 EC92 EC92 EC92 EF85 EZ81 EZ12 EF80 DG18-14A

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

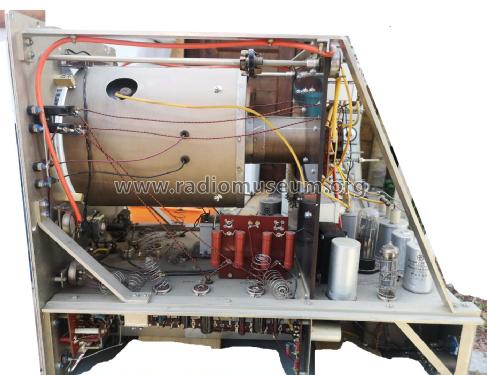

• Model: Oszillograf 128 - PEK, Paul E. Klein Electronic;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 470 x 510 mm / 12.6 x 18.5 x 20.1 inch

• Notes

• PEK Oszillograf Typ 128

  Schirmdurchmesser: 180 mm

  Zeitablenkung
  Frequenz: 1 Hz ... 100 kHz

  X-Verstärker
  Frequenz: 0,2 Hz ... 350 kHz

  Y-Verstärker
  Ablenkfaktor: 150 mV_ss/cm
  Frequenz: 0,5 Hz ... 1000 kHz


• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Mentioned in
• Hilfsbuch für Katodenstrahl-Oszillografie, H. Richter, 3.Aufl., 1958

• Author
• Model page created by a member from D. See "Data change" for further contributors.
