• Country
• Germany

• Manufacturer / Brand
• Pellegrinetti, Obercunnersdorf /OL (Ostd.)

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16082

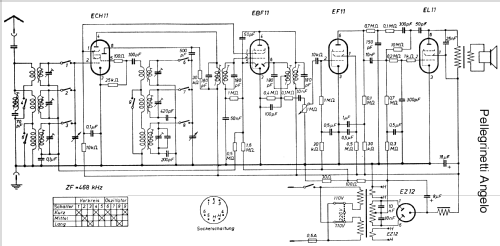

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 EF11 EL11 EZ12

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

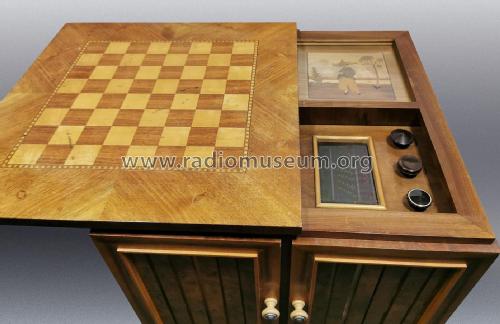

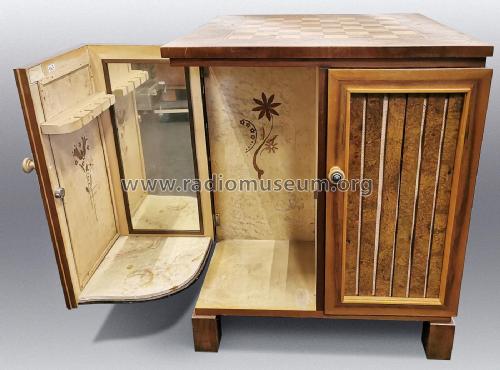

• Model: Angelo - Pellegrinetti, Obercunnersdorf

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 600 x 700 x 600 mm / 23.6 x 27.6 x 23.6 inch

• Notes
• Lampentischradio

• Price in first year of sale
• 990.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Radio-Mentor (4904)
