For model 104U, Philips Radio A/S; København

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner

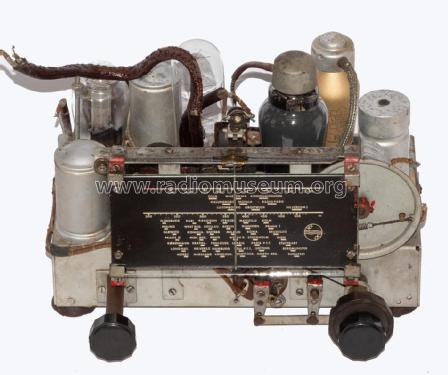

Valves / Tubes 3: CF7 CL4 CY1 C1 or C10
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)

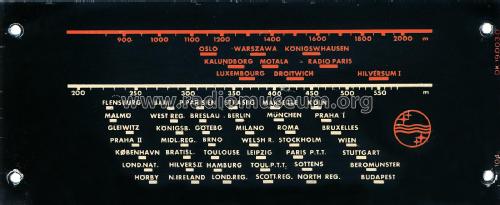

Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 220-225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 104U - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 270 x 220 mm / 20.1 x 10.6 x 8.7 inch
Notes Eisen-Urdox C1 für Netzspannung 220-225V, Eisen-Urdox C10 für Netzspannung 110V
Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)

Model page created by Hans-Jörg Bornack. See "Data change" for further contributors.
