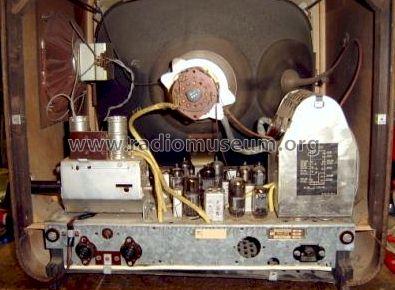

17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 239382) Television 17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 239381) Television
17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 239383) Television 17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 1779795) Television
17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 1779797) Television
Use red slider bar for more.
17TA182U /03 Ch= S4/03; Philips - Österreich (ID = 239382) Television
Philips - Österreich: 17TA182U /03 Ch= S4/03 [Television] ID = 239382 359x325
Select picture or schematic to display from thumbnails on the right and click for download.
For model 17TA182U /03 Ch= S4/03, Philips - Österreich:
Bilder freundlicherweise zur Verfügung gestellt von Herrn Willibald.F.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC88 PCF80 EF80 EF80 EF80 PCL84 EF80 EF80 PCL82 PCF80 ECH81 PCF80 PCL82 PL81 PY81 DY87 PY82 PY82 AW43-80
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 17TA182U /03 Ch= S4/03 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Ausführung mit 4 Tasten.
Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

Parallelgerät zum Hornyphon WT1728U/03.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
