208U-17

208U-17; Philips Radio A/S; K (ID = 2528123) Radio

208U-17; Philips Radio A/S; K (ID = 2528124) Radio

208U-17; Philips Radio A/S; K (ID = 2585647) Radio
208U-17; Philips Radio A/S; K (ID = 2528122) Radio
Use red slider bar for more.
208U-17; Philips Radio A/S; K (ID = 2528122) Radio
Philips Radio A/S; K: 208U-17 [Radio] ID = 2528122 645x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model 208U-17, Philips Radio A/S; København:

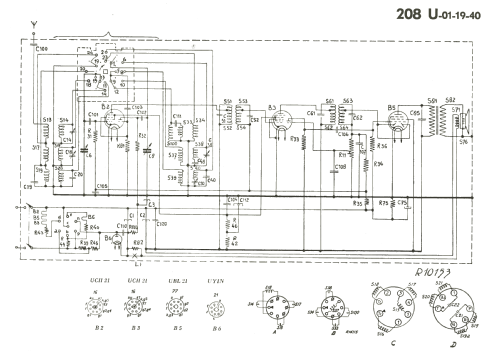

Picture form service documentation.

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1944 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 125; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 208U-17 - Philips Radio A/S; København
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 160 x 130 mm / 11 x 6.3 x 5.1 inch
Notes

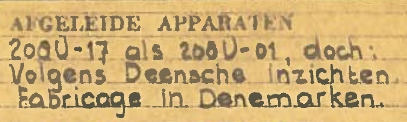

Philips model 208U-17 was manufactured in Denmark and, according to "Philips Apparatenblad 208U-01", based on Philips model 208U-01.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Mentioned in - - Manufacturers Literature (Philips Apparatenblad 208U-01)
Literature/Schematics (1) Radio Historisch Tijdschrift, Nr. 168, March 2019

Model page created by Gidi Verheijen. See "Data change" for further contributors.
