21CA114A Ch= C1

Philips - Österreich

  • Year
  • 1954–1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 95422

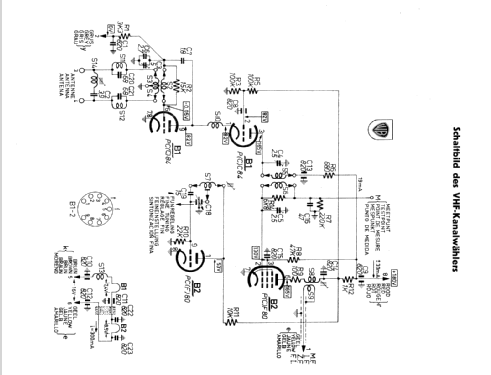

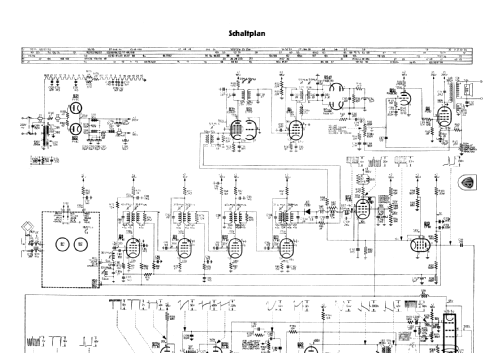

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21CA114A Ch= C1 - Philips - Österreich
  • Shape
  • Console with any shape - in general
  • Notes
  • Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

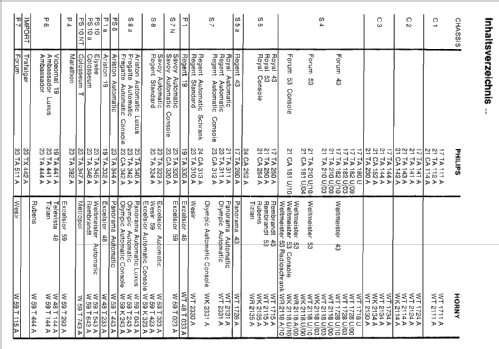

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
