• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 282382

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 EF80 PCF80 PCF80 PCF80 PCF80 PCF80 PCF80 PL82 PL82 PY82 PY82 PL81 PY81 DY86 MW53-20

• Number of Transistors

• Semiconductors
• OA71 OA71 OA71 OA70

• Main principle
• Superheterodyne (common); ZF/IF 43500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• 110; 125; 165; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 4.5 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

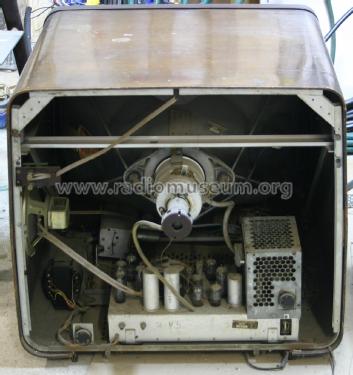

• Model: Torino 21TI123A /02 - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 560 x 530 mm / 24 x 22 x 20.9 inch

• Notes

• Only VHF

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Price in first year of sale
• 190,000.00 ITL

• Literature/Schematics (1)
• Schemario tv Philips, 1972 edizioni CELI page 11

• Author
• Model page created by Luca Pradelli. See "Data change" for further contributors.
