• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111980

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCF80 PCF80 PCF80 PCF80 PCF80 PCL82 PCL82 EF80 EF80 EF80 EF80 PL83 ECH81 PL36 PY81 DY86 UY82 UY82 UY82 MW53-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

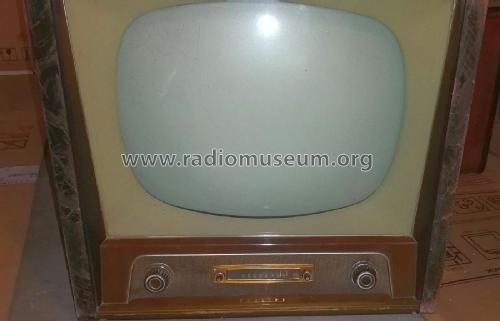

• Model: Bari 21TX143A - Philips; Eindhoven tubes

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 645 x 620 x 480 mm / 25.4 x 24.4 x 18.9 inch

• Notes

• 53 cm B/W TV with 12 channel CCIR standard VHF drum tuner.

  • Presa antenna 300 ohm;
  • 6 canali VHF;
  • Consumo :220 W;
  • Antenna interna orientabile;
  • Presa per altoparlante supplementare.

• Net weight (2.2 lb = 1 kg)
• 52 kg / 114 lb 8.6 oz (114.537 lb)

• Price in first year of sale
• 1,245.00 NLG

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Catalogo ANIE (n°2 pag. 232)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
