373A

373A; Philips Finland - (ID = 2524943) Radio

373A; Philips Finland - (ID = 2524944) Radio

373A; Philips Finland - (ID = 2524945) Radio

373A; Philips Finland - (ID = 2524946) Radio

373A; Philips Finland - (ID = 2524947) Radio

373A; Philips Finland - (ID = 2524950) Radio

373A; Philips Finland - (ID = 2524951) Radio

373A; Philips Finland - (ID = 2524952) Radio

373A; Philips Finland - (ID = 2524953) Radio

373A; Philips Finland - (ID = 2524954) Radio
373A; Philips Finland - (ID = 1232807) Radio 373A; Philips Finland - (ID = 1232808) Radio
373A; Philips Finland - (ID = 1232809) Radio 373A; Philips Finland - (ID = 1232810) Radio
373A; Philips Finland - (ID = 1232811) Radio 373A; Philips Finland - (ID = 1232812) Radio
373A; Philips Finland - (ID = 1232813) Radio 373A; Philips Finland - (ID = 1232814) Radio
Use red slider bar for more.
373A; Philips Finland - (ID = 1232807) Radio
Philips Finland -: 373A [Radio] ID = 1232807 922x692

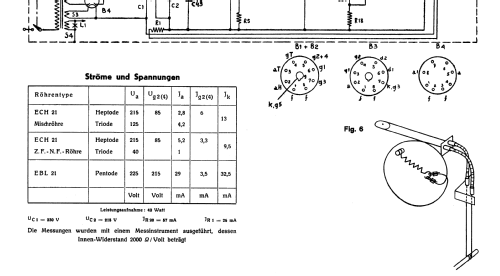

Select picture or schematic to display from thumbnails on the right and click for download.
For model 373A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 373A - Philips Finland - see also
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 395 x 240 x 165 mm / 15.6 x 9.4 x 6.5 inch
Notes

Dial lamp: 8045D-00

See also model BX373A.

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
