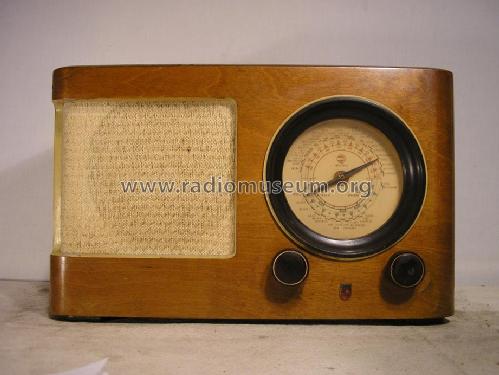

375A; Philips Finland - (ID = 1327977) Radio
Philips Finland -: 375A [Radio] ID = 1327977 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 375A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner

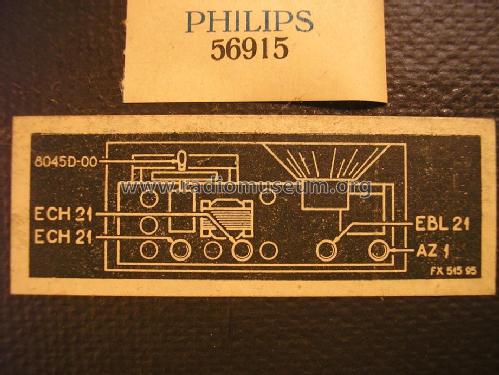

Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common)

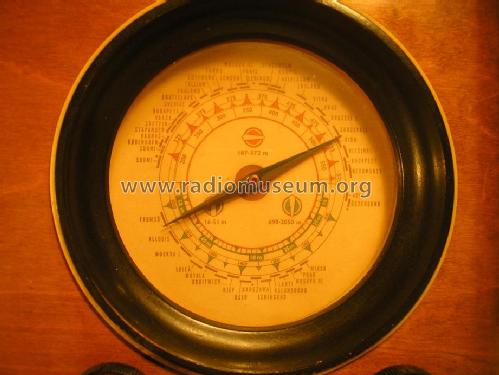

Wave bands Broadcast, Long Wave and Short Wave.
Details

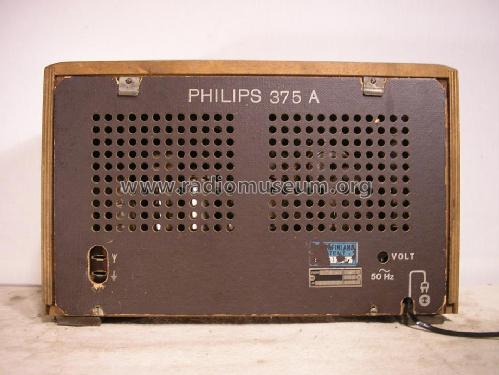

Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 375A - Philips Finland - see also

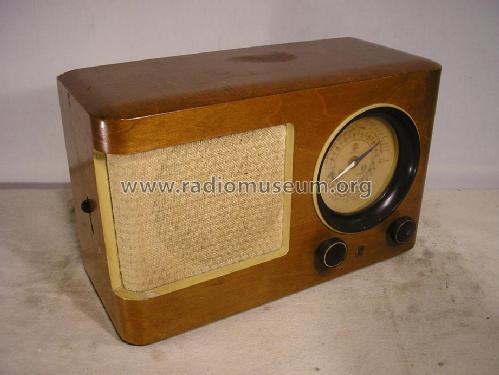

Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 415 x 262 x 175 mm / 16.3 x 10.3 x 6.9 inch
Notes

Dial lamp: 8045D-00

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
