400A/II

400A/II; Philips Finland - (ID = 1261961) Radio 400A/II; Philips Finland - (ID = 1323549) Radio
400A/II; Philips Finland - (ID = 1323550) Radio 400A/II; Philips Finland - (ID = 1323551) Radio
400A/II; Philips Finland - (ID = 1323552) Radio 400A/II; Philips Finland - (ID = 1323553) Radio
400A/II; Philips Finland - (ID = 1323554) Radio
Use red slider bar for more.

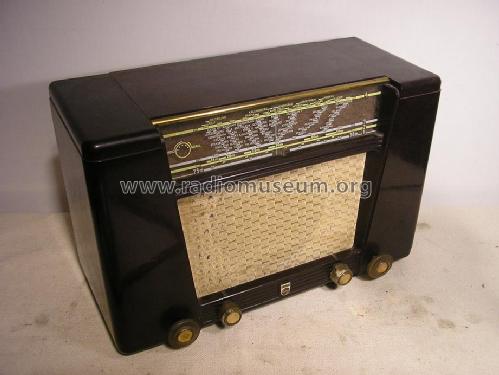

400A/II; Philips Finland - (ID = 1261961) Radio
Philips Finland -: 400A/II [Radio] ID = 1261961 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 400A/II, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 400A/II - Philips Finland - see also
Material Bakelite case
Shape Tablemodel, with any shape - general.

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
