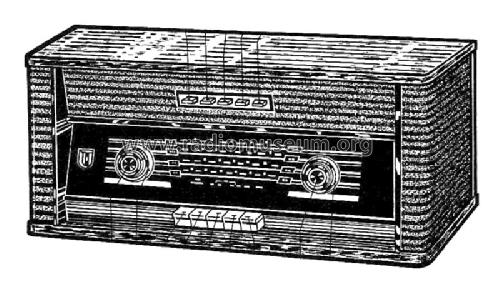

Philips; Eindhoven: 4212A /00 /01 [Radio] ID = 2222649 800x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4212A /00 /01 (CR4212A), Philips; Eindhoven (tubes international!); Miniwatt:
From service documentation

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 4212A /00 /01 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 232 x 212 mm / 21.7 x 9.1 x 8.3 inch
Notes

FM tuner module A3 265 61.
2 speakers AD3500M (5 ohms).

Tuning ranges:
FM 87.5 - 104 MHz
SW 5.9 - 18.2 MHz
MW 517 - 1620 kHz
LW 150 - 260 kHz

Note: the Cossor model CR4212A is mentioned in the Service Notes for this model.

See also the similar models Mediator MD4212A and Aristona SA4212A

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
