463A

463A; Philips Finland - (ID = 1179796) Radio 463A; Philips Finland - (ID = 1179795) Radio
463A; Philips Finland - (ID = 1179797) Radio 463A; Philips Finland - (ID = 1179798) Radio
463A; Philips Finland - (ID = 1179799) Radio 463A; Philips Finland - (ID = 1179800) Radio
463A; Philips Finland - (ID = 1179802) Radio 463A; Philips Finland - (ID = 1179803) Radio
463A; Philips Finland - (ID = 1978945) Radio 463A; Philips Finland - (ID = 1978946) Radio
Use red slider bar for more.
463A; Philips Finland - (ID = 1179796) Radio
Philips Finland -: 463A [Radio] ID = 1179796 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 463A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner

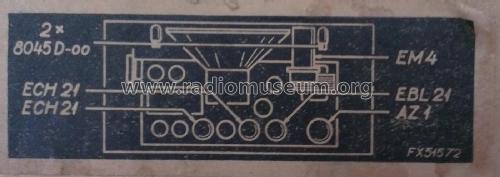

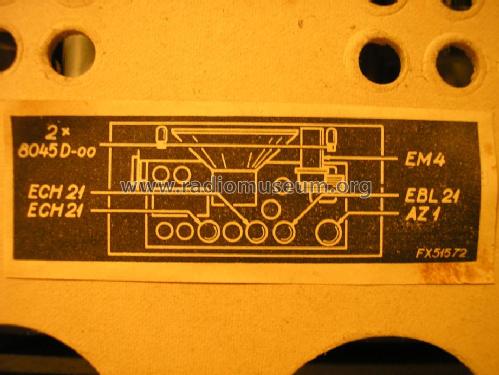

Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 463A - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 422 x 290 x 210 mm / 16.6 x 11.4 x 8.3 inch
Notes Dial lamps: 2x 8045D-00

Model page created by Timo Rantasaari. See "Data change" for further contributors.
