480L

480L; Philips Radio A/S; K (ID = 304446) Radio 480L; Philips Radio A/S; K (ID = 304447) Radio
480L; Philips Radio A/S; K (ID = 304448) Radio
Use red slider bar for more.

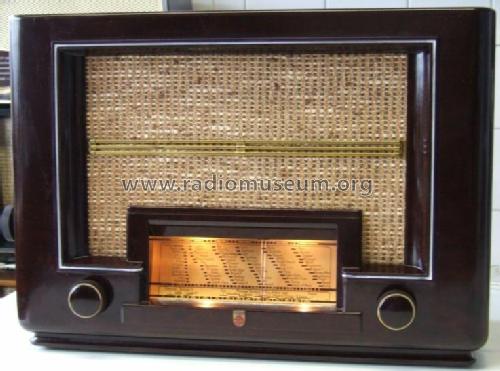

480L; Philips Radio A/S; K (ID = 304446) Radio
Philips Radio A/S; K: 480L [Radio] ID = 304446 737x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model 480L, Philips Radio A/S; København:
ebay 200085741615, Erlaubnis eingeholt

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 CBL1 CY1 C1 or C9
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 480L - Philips Radio A/S; København
Material Bakelite case
Shape Tablemodel, low profile (big size).

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips Radio A/S; København
Here you find 101 models, 98 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
