• Year
  • 1949 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104140

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

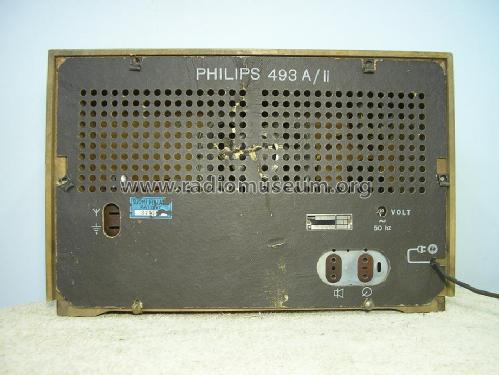

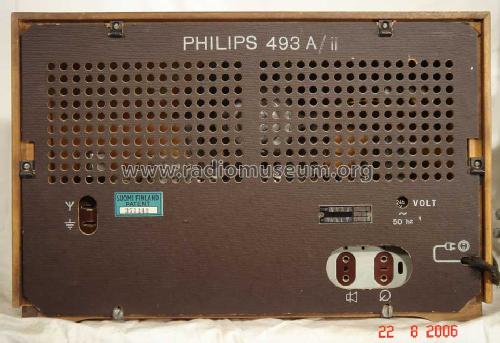

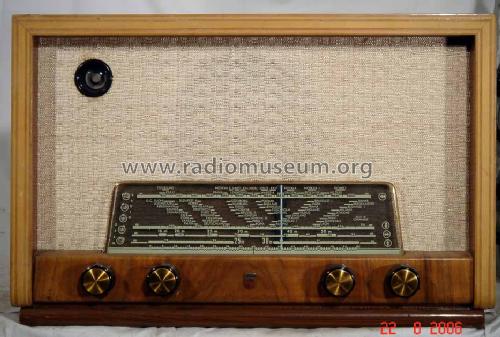

  • Model: 493A/II - Philips Finland - see also
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 460 x 300 x 215 mm / 18.1 x 11.8 x 8.5 inch
  • Notes
  • Model is close to BX493A except magic eye EM34.
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
