4-38U

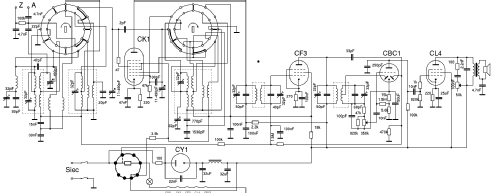

4-38U; Philips - Polskie (ID = 1466981) Radio

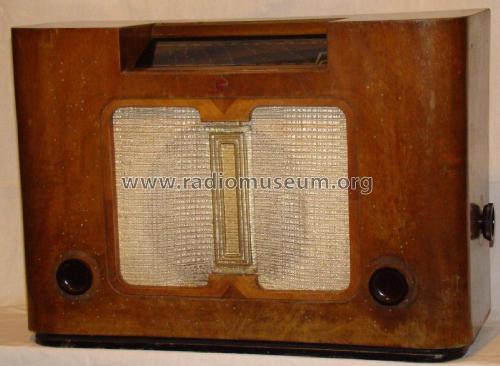

4-38U; Philips - Polskie (ID = 1471618) Radio 4-38U; Philips - Polskie (ID = 1466730) Radio
4-38U; Philips - Polskie (ID = 1471619) Radio
Use red slider bar for more.
4-38U; Philips - Polskie (ID = 1471618) Radio
Philips - Polskie: 4-38U [Radio] ID = 1471618 933x759
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4-38U, Philips - Polskie Zaklady Philips

Country:  Poland
Manufacturer / Brand:  Philips - Polskie Zaklady Philips
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 CY1 Urdox
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4-38U - Philips - Polskie Zaklady
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 340 x 175 mm / 19.3 x 13.4 x 6.9 inch
Notes

See also the AC model Philips 4-38A.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
