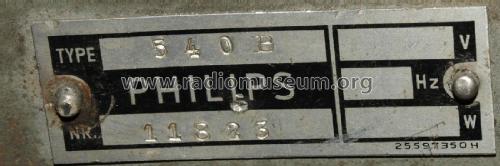

540B; Philips - Polskie (ID = 1834497) Radio
Use red slider bar for more.
540B; Philips - Polskie (ID = 1834368) Radio
Philips - Polskie: 540B [Radio] ID = 1834368 1400x991
Select picture or schematic to display from thumbnails on the right and click for download.
For model 540B, Philips - Polskie Zaklady Philips

Country:  Poland
Manufacturer / Brand:  Philips - Polskie Zaklady Philips
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF4 KB2 KL4
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 540B - Philips - Polskie Zaklady
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 270 x 485 mm / 19.9 x 10.6 x 19.1 inch
Notes

Same chassis as in Philips 4-39B, Korona 69B.

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
