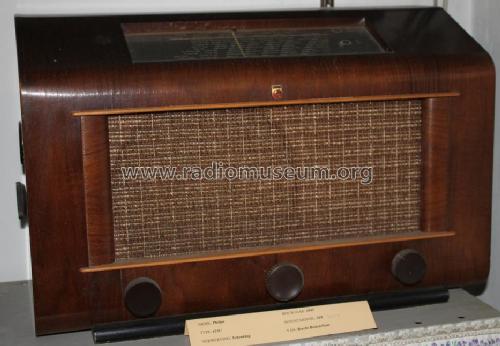

625U L01; Philips Belgium (ID = 761435) Radio
Philips Belgium: 625U L01 [Radio] ID = 761435 933x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model 625U L01, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH4 UF9 UBL1 UY1N
Main principle Superheterodyne (common); ZF/IF 473 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 200; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 625U L01 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 325 x 230 mm / 20.1 x 12.8 x 9.1 inch
Notes

There is another version with different I.F. : 625U LO2

Same model but in other case is Telefunken 365GWK Sw.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
