• Year
  • 1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 242100

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 125; 200; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

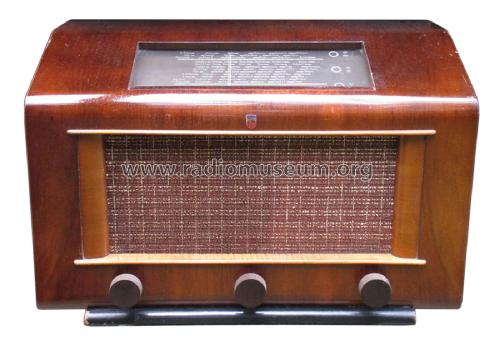

  • Model: 625U L02 - Philips Belgium Belgien
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 510 x 325 x 230 mm / 20.1 x 12.8 x 9.1 inch
  • Notes
  • There is another version with different I.F. : 625U LO1


  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
