655M

655M; Philips Italy; (ID = 38393) Radio
655M; Philips Italy; (ID = 743427) Radio
Use red slider bar for more.
655M; Philips Italy; (ID = 743427) Radio
Philips Italy;: 655M [Radio] ID = 743427 563x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 655M, Philips Italy; Milano (MI):
Dal mensile anni 30' -Rivista ALATI-

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner

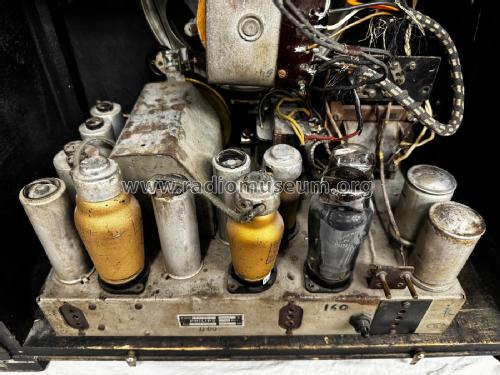

Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 138 kHz
Tuned circuits 7 AM circuit(s)

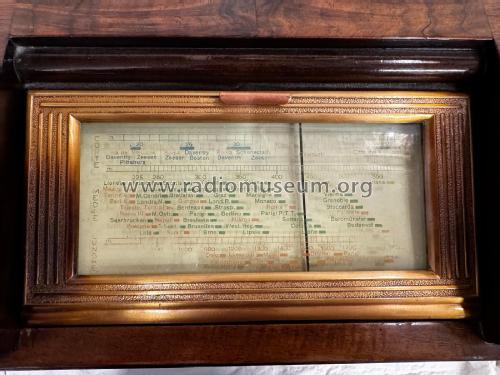

Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC)

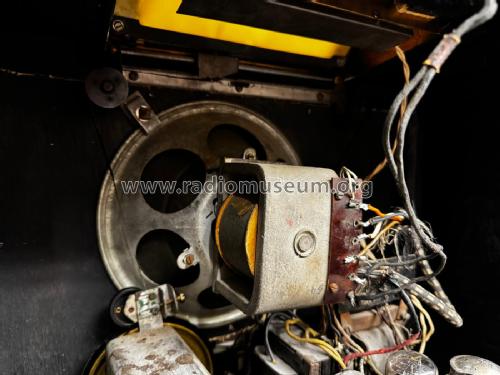

Loudspeaker
Power out
from Radiomuseum.org Model: 655M - Philips Italy; Milano MI
Material Wooden case

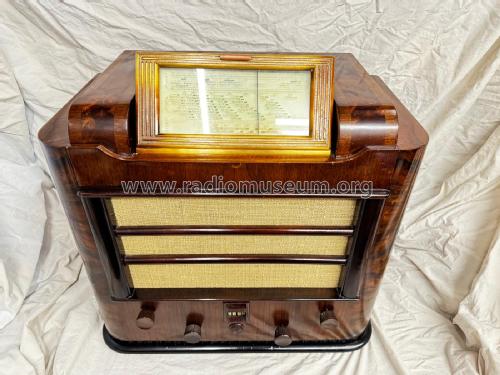

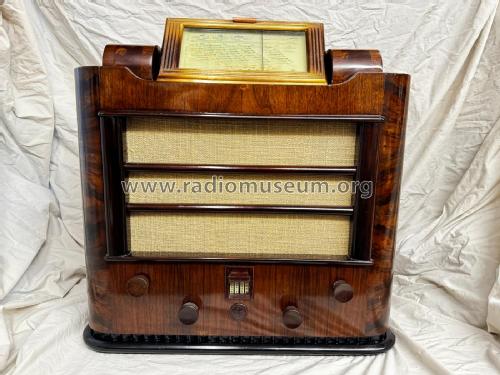

Shape Tablemodel, low profile (big size).
Notes

Indicatore di sintonia a proiezione d'ombra.
Controllo di tono. Ingresso Fono.

Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
