658U

658U; Philips Finland - (ID = 1003121) Radio 658U; Philips Finland - (ID = 1003122) Radio
658U; Philips Finland - (ID = 1003123) Radio 658U; Philips Finland - (ID = 1003124) Radio
658U; Philips Finland - (ID = 1366384) Radio 658U; Philips Finland - (ID = 1366385) Radio
658U; Philips Finland - (ID = 1366386) Radio 658U; Philips Finland - (ID = 2057036) Radio
658U; Philips Finland - (ID = 2057037) Radio 658U; Philips Finland - (ID = 2057039) Radio
Use red slider bar for more.

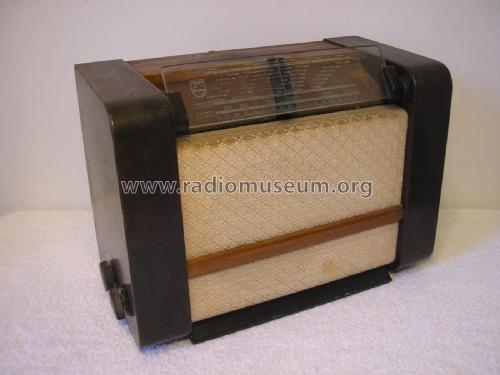

658U; Philips Finland - (ID = 1003121) Radio
Philips Finland -: 658U [Radio] ID = 1003121 820x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model 658U, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 658U - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 387 x 274 x 202 mm / 15.2 x 10.8 x 8 inch
Source of data - - Data from my own collection

Model page created by Timo Rantasaari. See "Data change" for further contributors.
