764M

764M; Philips Italy; (ID = 38395) Radio
764M; Philips Italy; (ID = 1607950) Radio 764M; Philips Italy; (ID = 1607953) Radio
764M; Philips Italy; (ID = 1607954) Radio 764M; Philips Italy; (ID = 1607955) Radio
764M; Philips Italy; (ID = 743428) Radio 764M; Philips Italy; (ID = 1628507) Radio
Use red slider bar for more.
764M; Philips Italy; (ID = 1607950) Radio
Philips Italy;: 764M [Radio] ID = 1607950 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 764M, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 764M - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

indicatore di sintonia a proiezione d'ombra.
Controllo di tono. Ingresso Fono.

Price in first year of sale 1'350.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

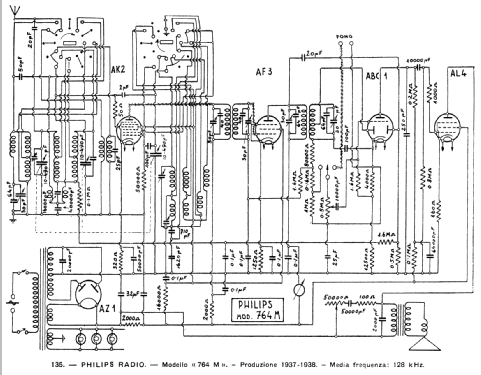

Literature/Schematics (1) -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
