777RF

777RF; Philips Italy; (ID = 313046) Radio
Use red slider bar for more.
777RF; Philips Italy; (ID = 313046) Radio

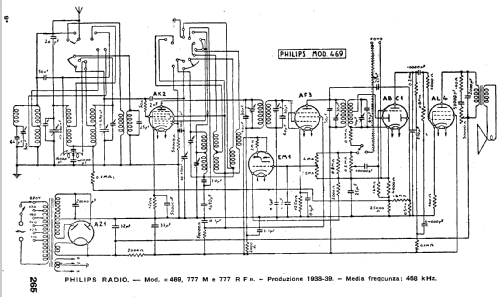

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 ABC1 AL4 AZ1 EM1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 170; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 777RF - Philips Italy; Milano MI
Material Wooden case
Shape Console with any shape - in general
Notes

Indicatore di sintonia (EM1). Controllo di tono

Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
