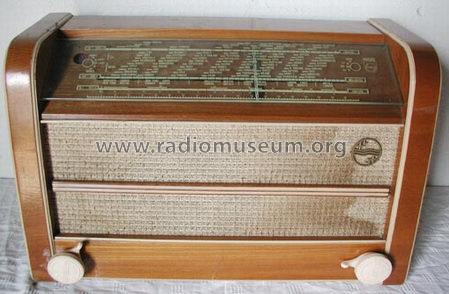

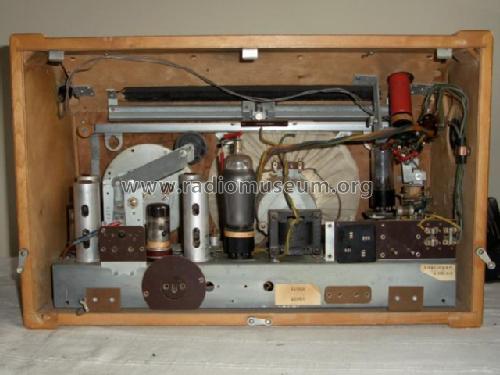

856 U-19 (865U19)

856 U-19 ; Philips, Svenska AB, (ID = 243994) Radio 856 U-19 ; Philips, Svenska AB, (ID = 243995) Radio
856 U-19 ; Philips, Svenska AB, (ID = 243996) Radio 856 U-19 ; Philips, Svenska AB, (ID = 1074853) Radio
Use red slider bar for more.
856 U-19 ; Philips, Svenska AB, (ID = 243994) Radio
Philips, Svenska AB,: 856 U-19 [Radio] ID = 243994 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 856 U-19 (865U19), Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1946 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL1 UY1N UM4
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 120; 135; 160; 225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 856 U-19 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 335 x 230 mm / 20.9 x 13.2 x 9.1 inch
Source of data - - Data from my own collection

Model page created by Leon Ouziel Canals. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 189 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
