85-U

85-U; Philips Ibérica, (ID = 2431116) Radio

85-U; Philips Ibérica, (ID = 2431117) Radio

85-U; Philips Ibérica, (ID = 2431118) Radio

85-U; Philips Ibérica, (ID = 2431119) Radio
85-U; Philips Ibérica, (ID = 756627) Radio
Use red slider bar for more.
85-U; Philips Ibérica, (ID = 756627) Radio
Philips Ibérica,: 85-U [Radio] ID = 756627 832x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model 85-U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:
Sacada del manual

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner

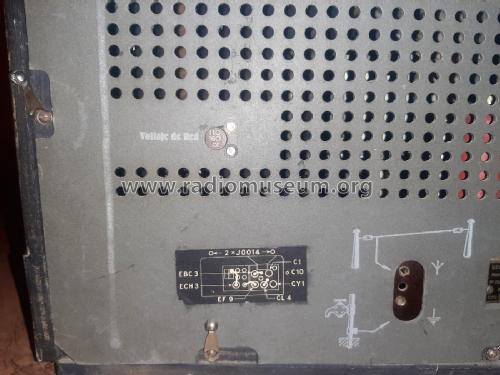

Valves / Tubes 5: ECH3 EF9 EBC3 CL4 CY1 C1 or C10
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-160; 160-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 85-U - Philips Ibérica, COPRESA,
Material Wooden case

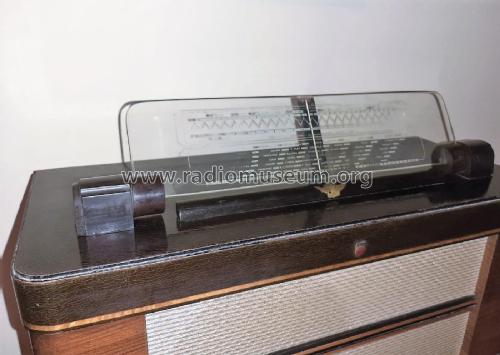

Shape Tablemodel with Push Buttons.
Notes C10: 110-160 V~; C1: 160-250 V~.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
